imagefilledellipse
(PHP 4 >= 4.0.6, PHP 5)
imagefilledellipse — Draw a filled ellipse
설명
bool imagefilledellipse
( resource $image
, int $cx
, int $cy
, int $width
, int $height
, int $color
)
Draws an ellipse centered at the specified coordinate on the given image .
매개변수
- font
-
내장 글꼴 1, 2, 3, 4, 5(큰 숫자가 큰 글꼴)나 imageloadfont()로 등록한 글꼴 식별자를 사용할 수 있습니다.
- cx
-
x-coordinate of the center
- cy
-
y-coordinate of the center
- width
-
The arc width
- height
-
The arc height
- color
-
The fill color. A color identifier created with imagecolorallocate()
반환값
성공할 경우 TRUE를, 실패할 경우 FALSE를 반환합니다.
예제
Example#1 imagefilledellipse() example
<?php
// create a blank image
$image = imagecreatetruecolor(400, 300);
// fill the background color
$bg = imagecolorallocate($image, 0, 0, 0);
// choose a color for the ellipse
$col_ellipse = imagecolorallocate($image, 255, 255, 255);
// draw the white ellipse
imagefilledellipse($image, 200, 150, 300, 200, $col_ellipse);
// output the picture
header("Content-type: image/png");
imagepng($image);
?>

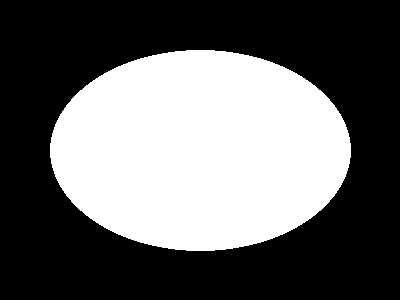

위 예제의 출력 예:
주의
Note: 이 함수는 GD 2.0.1 이상이 필요합니다. (2.0.28 이상을 권장합니다)
